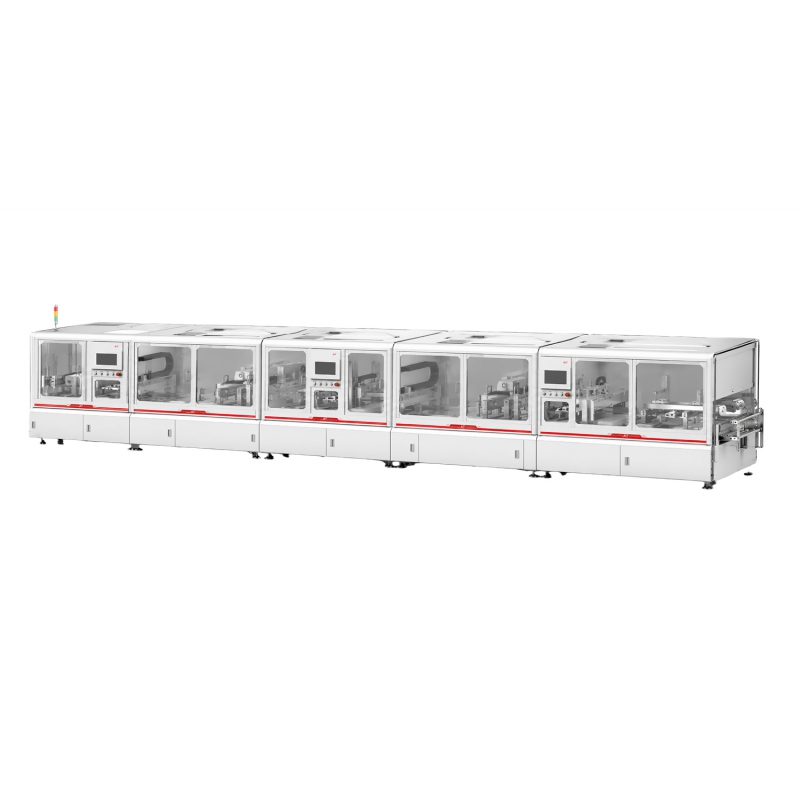

Fully Automatic Fakra Board-End Connector Assembly & Inspection Line

Industry Focus

Specialized in the field of automotive electronics, applicable to ADAS (Advanced Driver Assistance Systems) and in-vehicle IoT modules.

Applicable Products

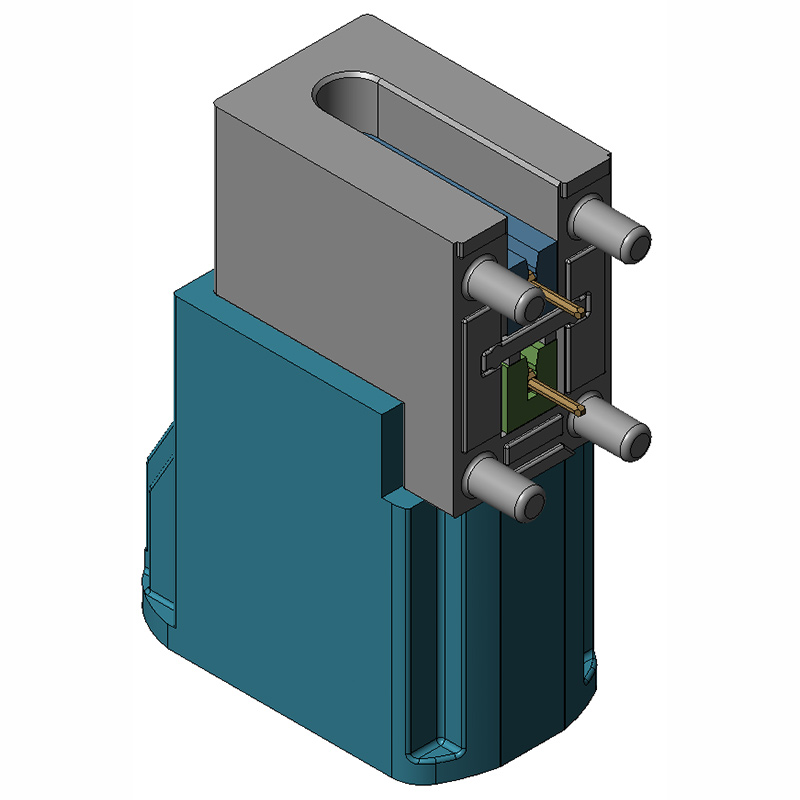

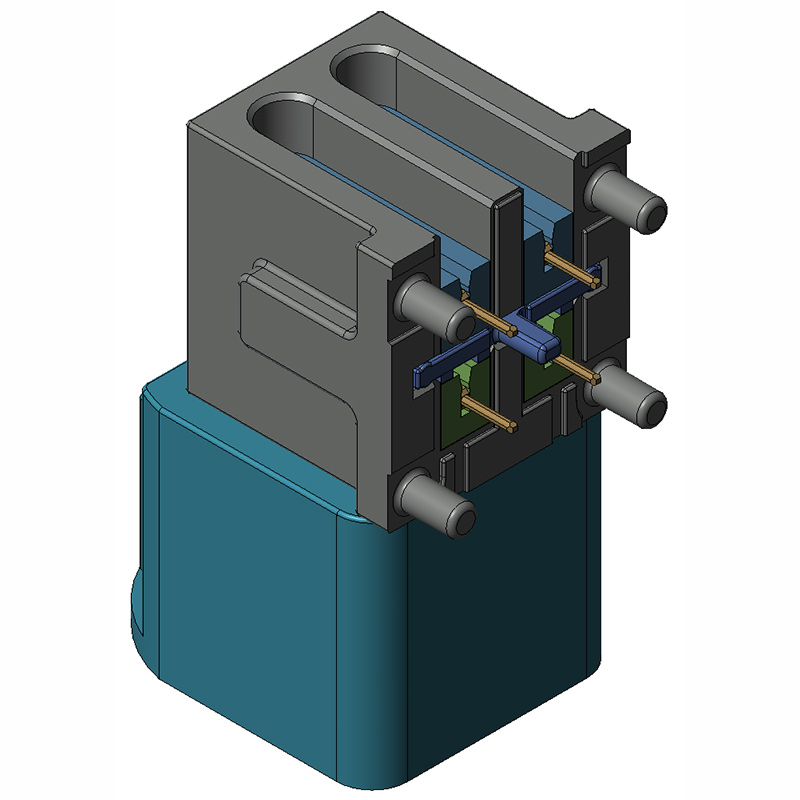

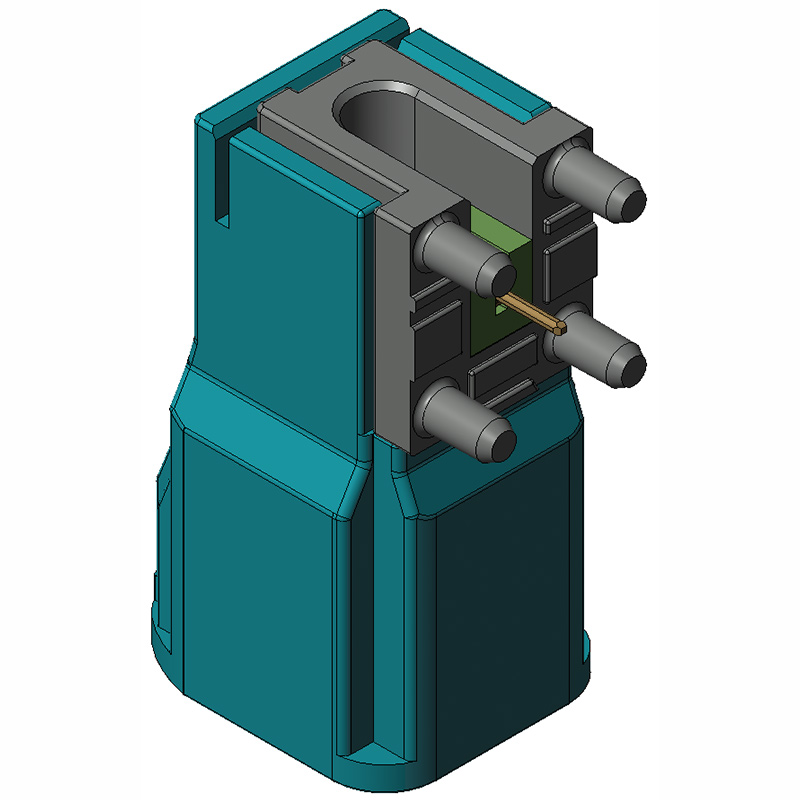

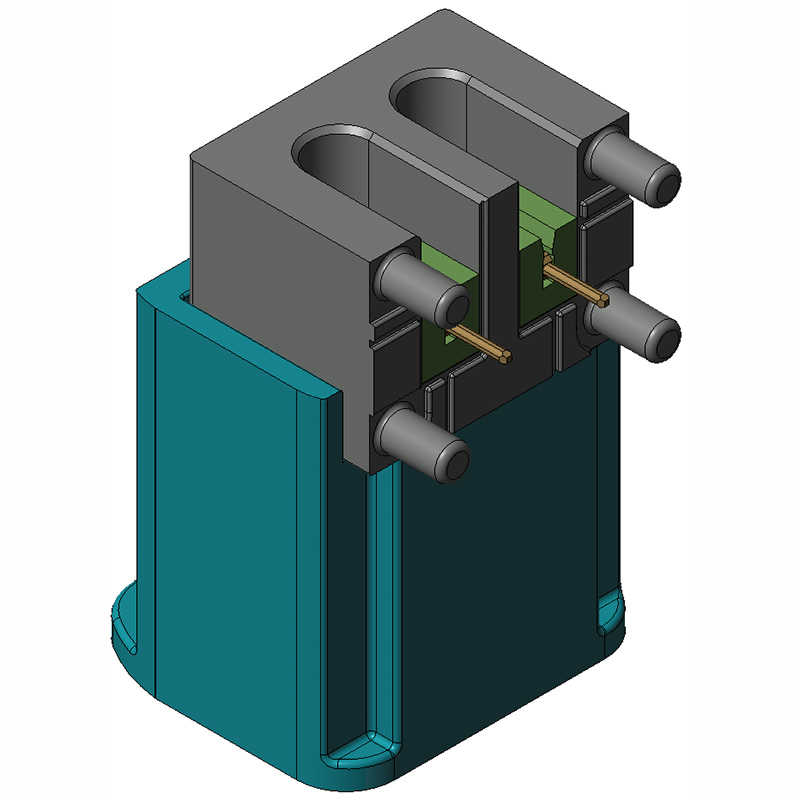

Tailor-made for the assembly and inspection of Fakra/SMB board-end connectors (right-angle/vertical types).

Line Compatibility

Supports integration with SMT production lines to achieve 100% in-line inspection of PCBA .

• Precision Crimping Control: High-precision servo motors, machine vision, and automated control systems ensure micron-level repeatability in inner & outer conductor crimping depth and component position, providing the fundamental guarantee for the product’s electrical performance.
• Intelligent Quality Closed Loop: This line integrates real-time process monitoring and multi-station inspection systems to form an intelligent closed loop of processing-inspection-judgment. It can not only discharge defective products in real time but also automatically adjust process parameters through data feedback, enabling preventive quality control.
• Seamless Production Line Integration: Standard reel packaging allows finished products to directly interface with customers’ fully automated SMT production lines, enabling full-process automation from connector manufacturing to PCB soldering, thereby eliminating human intervention and quality risks in intermediate processes.
• Flexible Inspection & Traceability: This line supports simultaneous production of two types of terminal products in the same line. It integrates standardized pin insertion mechanisms, visual positioning, dimensions & appearance inspection, and crimping pressure monitoring to achieve 100% full inspection and full-process data upload for traceability.
