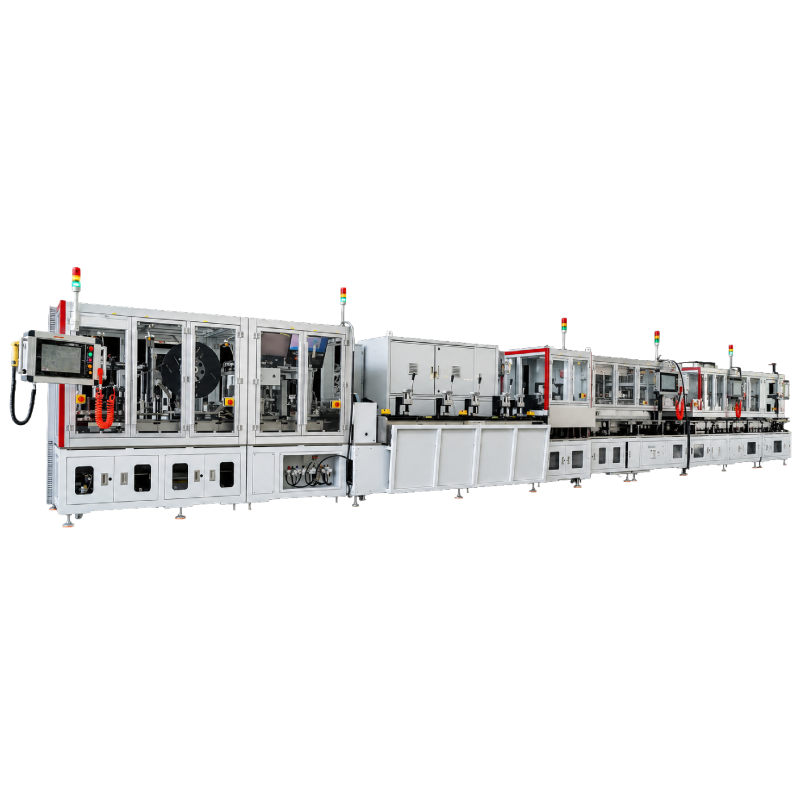

Fully Automatic Impel Backplane Connector Assembly & Inspection Line

Industry Focus

Applied in AI high-speed wire harnesses, high-speed backplane interconnects, and high-speed signal connections for data centers, and other related fields.

Applicable Products

Tailor-made for the automated production of next-generation high-speed backplane connectors.

Line Compatibility

Supports semi-auto/fully-auto production modes, standalone operation/full-line integration, and seamless connection with downstream inspection equipment.

• Precision Assembly: Utilizes dual-positioning system via pallet and vision (pallet accuracy: ±0.01 mm; vision-guided assembly accuracy: ±0.02 mm), ensuring high precision and consistency.
• Full-Process Quality Control: Incorporates full-process vision monitoring and real-time inspection systems, strictly controlling every stage of manufacturing with pinpoint accuracy.
• Flexible Manufacturing: Key stations feature a modular quick-change design, enabling quick changeover within 5 minutes and an equipment reuse rate of up to 80%; simple operation and low training costs.
