Connector Automation

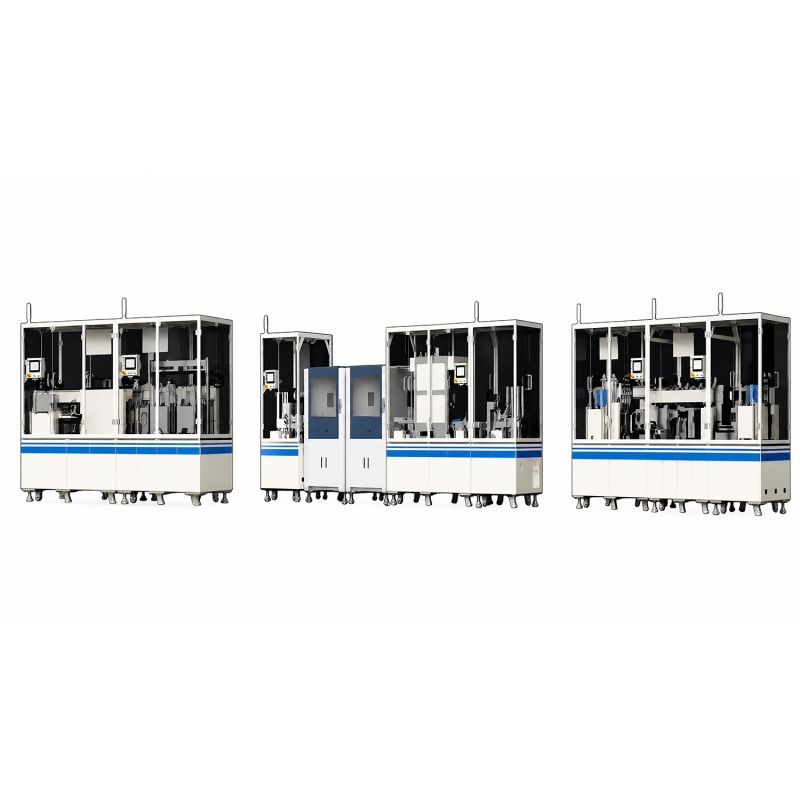

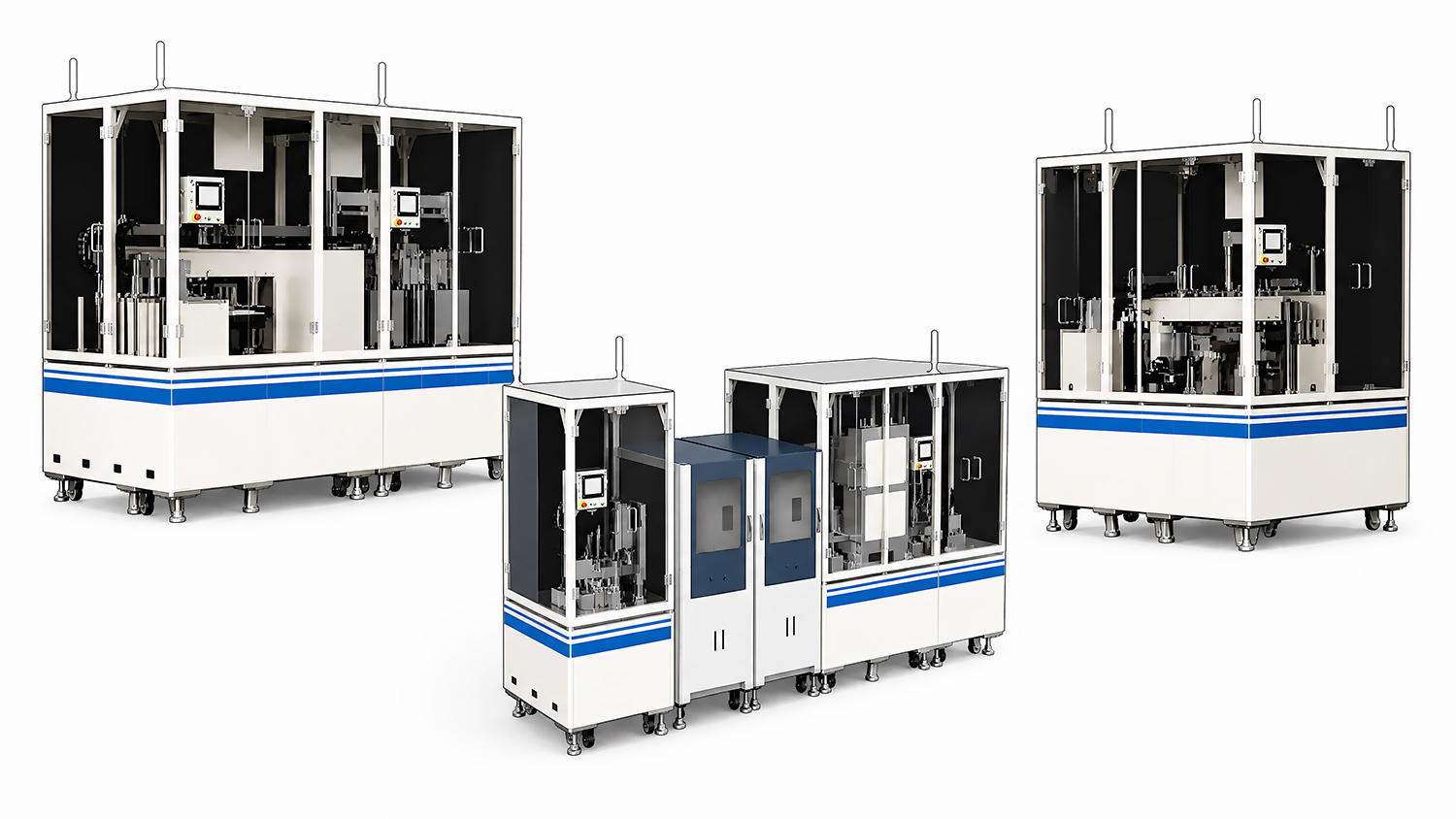

Specifically designed for high-end consumer electronics connectors, this automatic line covers key processes including rack loading, masking , glue removal, and unloading. It achieves full-process automated operation, significantly improving productivity and product consistency, and fulfilling the mass- production requirements for high-end precision connector plating.
Industry Focus
Applied in fields like precision plating for consumer electronics products.
Applicable Products
Tailor-made for the automation of rack plating, glue masking, unloading, and other processes in the high-end connector plating process.
Line Compatibility
Supports seamless integration into the upstream, midstream, and downstream stages of plating production lines.

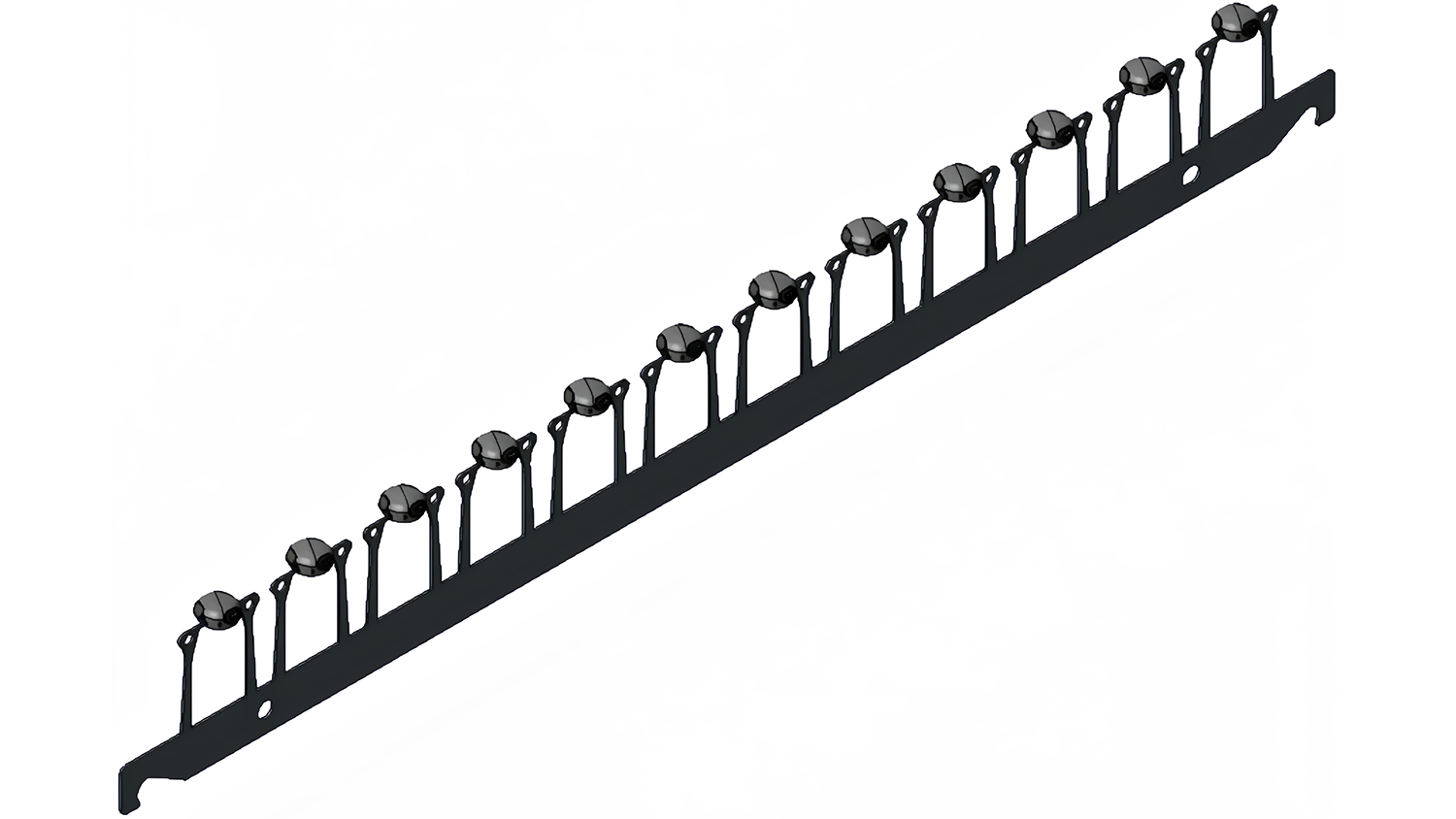

Precision Touch Tooling Design
By leveraging an ingenious plating rack structure, the line achieves precise product positioning and secure clamping. This design perfectly balances the requirements of high-frequency automated material handling with the rigorous demands of the plating process, effectively ensuring product quality and minimizing defect rates.
| Item | Specification |
|---|---|
| Dimensions (L×W×H) | 11,000 mm*1,200 mm*2,000 mm |
| CT | ≤ 1.3 s |
| OEE | ≥ 90% |
| Yield | ≥ 99.5% |
| Operating Voltage | AC 380 V±10%，50/60 Hz |
| Operating Air Pressure | 0.5–0.7 MPa |
| Equipment Power Consumption | ≤ 45 kW |
| Safety Standards | CE/ISO 13849-1, safety light curtains + safety door interlocks |
| Communication Interface | EtherCAT, PROFINET, and TCP/IP |
