High-Speed Cable Automation

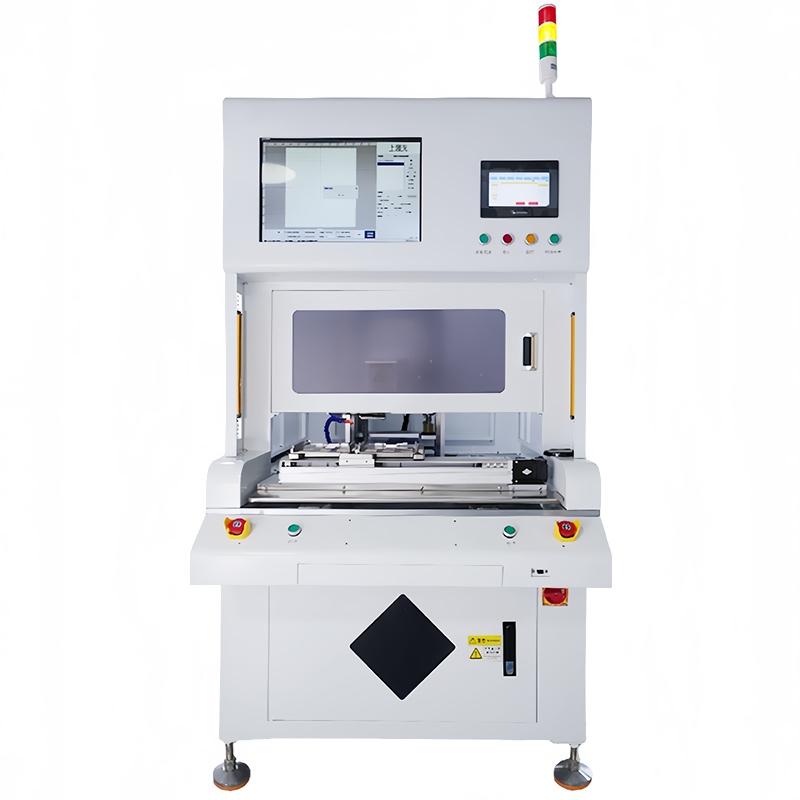

Semi-Automatic CO2 Laser Stripping Machine

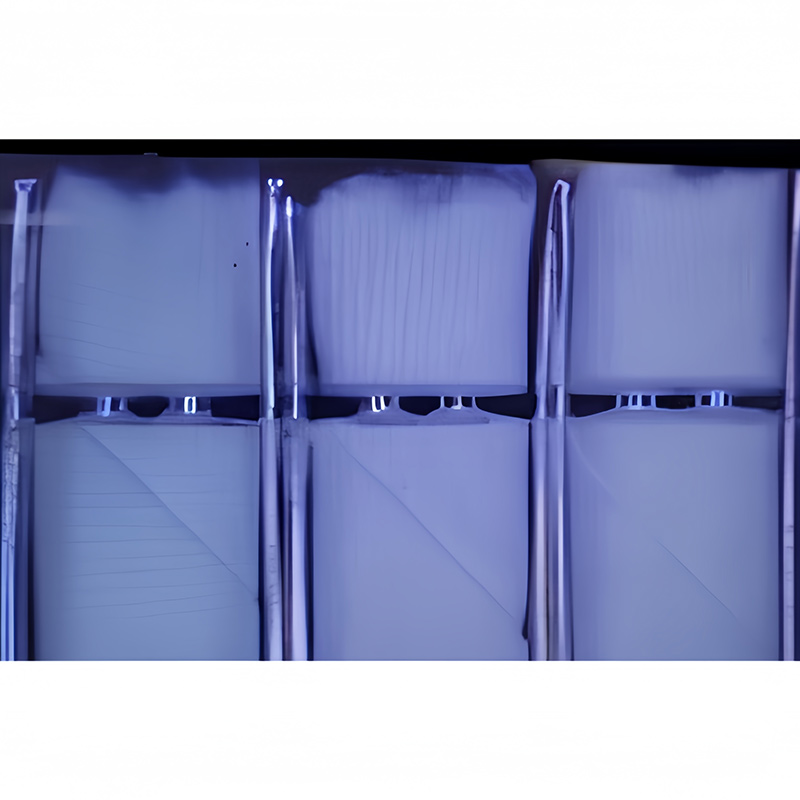

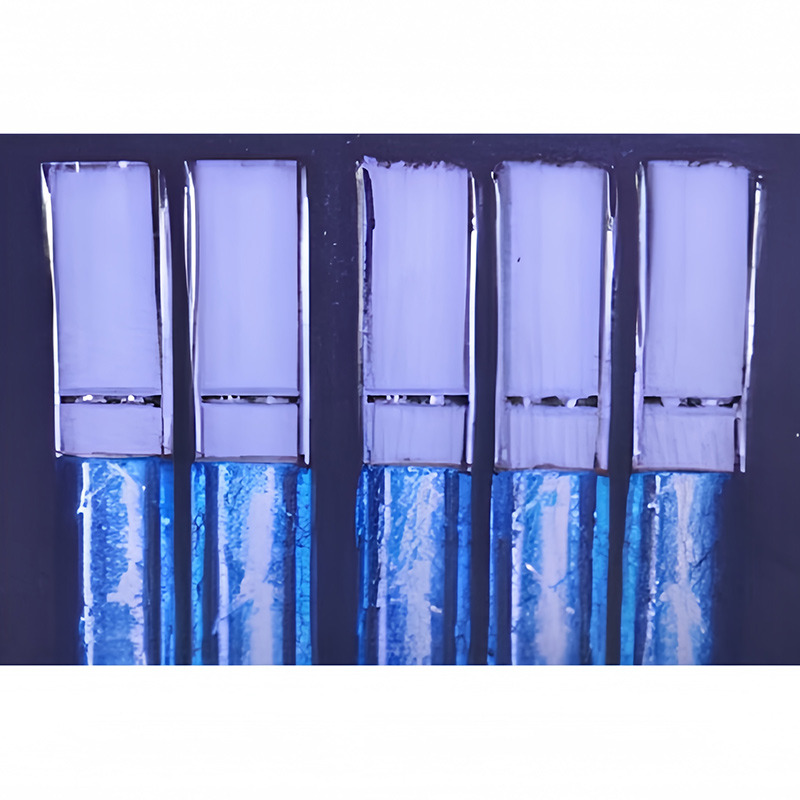

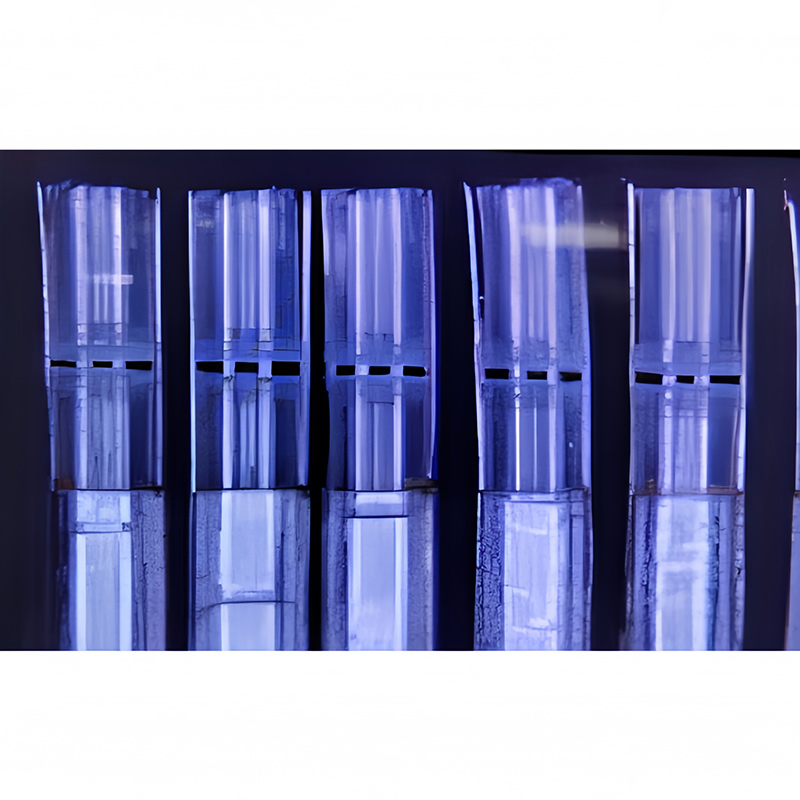

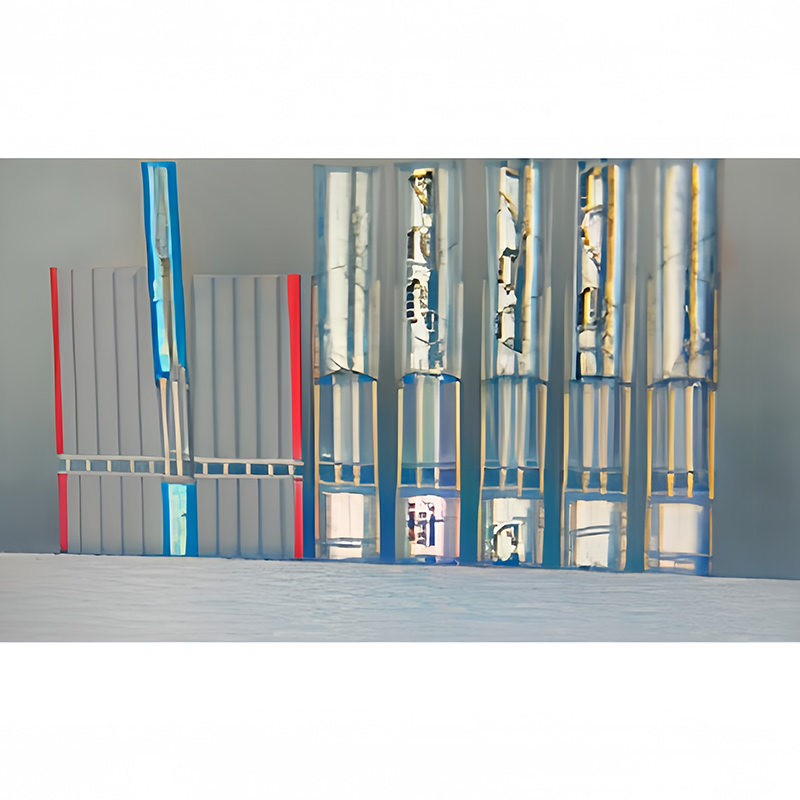

This advanced CO2 laser stripping machine is widely applied in the high-speed cable sector for precision insulation cutting. Utilizing CO2 laser cold-processing technology and non-contact cutting, it delivers exceptional precision and repeatability, ensuring clean, burr-free cuts without damaging the inner core wire. This significantly enhances processing yield and minimizes reliance on manual labor. Furthermore, this highly efficient CO2 laser wire stripper is also highly suitable for the precision stripping of high-speed cables, flat cables, HDMI cables, ribbon cables, and ultra-fine coaxial cables of AWG #30 and above.

Service & Support WhatsApp

Product Introduction

Applications

Industry Focus

High-speed cable processing and cable assembly manufacturing.

Applicable Products

High-speed cables, flat cables, HDMI cables, ribbon cables and ultra-fine coaxial cables of AWG 30 and finer.

Line Compatibility

Semi-automatic laser stripping equipment for standalone processing. Production-line configuration depends on process requirements.

Key Advantages

  • High-Performance Laser Source：As an industry-proven laser cable stripping machine, this equipment utilizes a premium laser characterized by stable output power, rapid response, and superior beam quality to ensure highly consistent processing results.
  • Efficient Water-Cooling System：By incorporating an integrated water-cooling system for optimal heat dissipation, it achieves long-term stable operation with reduced maintenance needs, effectively lowering operational costs.
  • Motor-Driven Precise Focusing：The motor-driven auto-focusing function enables rapid and precise locking of the focal point, eliminating manual debugging errors while significantly enhancing the accuracy and stability of the stripping process.

Technical Specifications

Item Specification
Rated Voltage AC220V 50Hz
Equipment Power <1.5 k W
Rated Laser Power 30W/50W（customizable based on customer requirements）
Laser Wave length 10.6 um, 9.3 um
Cooling Method Water-cooling
Stripping Path Implementation Optical path + Galvanometer
Q-switching Frequency 1 k Hz-1000 k Hz
Cutting Range Standard 100 × 100 mm (customizable based on customer requirements)
Dimensions (L×W×H) L 1100 x W 720 x H 1680 mm
