High-Speed Cable Automation

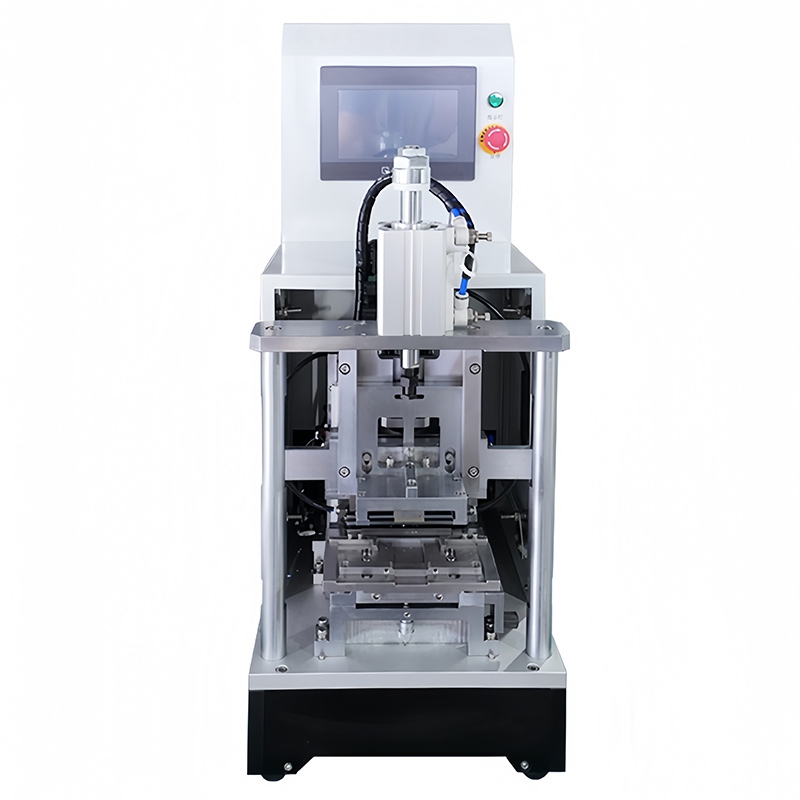

The machine uses a mechanical structure that simulates manual foil swinging and picking motions. After the swinging process, it automatically removes the surface aluminum foil or dielectric layer, reducing manual intervention and automating the handling process.
Industry Focus
High-speed cable processing and cable assembly manufacturing.
Applicable Products
Cable products requiring removal of surface aluminum foil or dielectric layers.
Line Compatibility
Semi-automatic desktop equipment designed for standalone workstation operation.
| Item | Specification |
|---|---|
| Rated Voltage | AC 220 V 50 Hz |
| Equipment Power | < 1.5 kW |
| Air Supply Pressure | 0.5-0.7 MPa |
| CT | ≤ 6 s |
| Applicable Product Width | < 90 mm |
| Remove Distance | < 10 mm |
| Dimensions (L×W×H) | L 550 x W 450 x H 500 mm |
